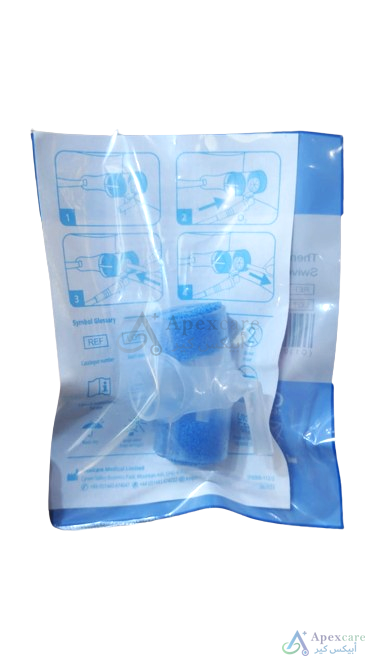

FLEXICARE THERMOTRACH TRACHEOSTOMY HME WITH VENT AND SWIVEL OXYGEN PORT

Description

ThermoTrach Tracheostomy HME with Vent and Swivel Oxygen Port is a lightweight, single-use heat and moisture exchanger designed for spontaneously breathing tracheostomy patients. It features a built-in self-sealing suction port that also functions as a vent, allowing secretion clearance during coughing to prevent airway blockage.

Features

• Integrated suction/vent port enables airway clearance and secretion expulsion
• Swivel oxygen port provides flexibility during oxygen therapy
• Self-sealing design supports hygienic suctioning without removing the device
• Lightweight construction ensures patient comfort during use
• Suitable for a wide range of tidal volumes (86–1000 ml)

Specifications

• HME Media: Blue Foam
• Tidal Volume Range: 86–1000 ml
• Moisture Output (mg/L):

– Min: 34.78 • At 500 ml: 25.55 • Max: 28.57

• Moisture Loss (mg/L):

– Min: 3.30 • At 500 ml: 11.55 • Max: 10.57

Pressure Drop at Gas Flow Rate (cmH₂O)

• Inspiratory Before Use: 0.67@30L/min, 2.00@60L/min, 4.05@90L/min
• Expiratory Before Use: 0.52@30L/min, 1.57@60L/min, 3.28@90L/min
• Inspiratory After 24h: 1.01@30L/min, 2.93@60L/min, 5.75@90L/min
• Expiratory After 24h: 0.75@30L/min, 2.26@60L/min, 4.48@90L/min
