PORTABLE OXYGEN CONCENTRATOR SIMPLYGO MINI

Features :

Reliable , lightweight and easy to use: The SimplyGo mini a portable oxygen concentrator is sleek and lightweight... a tiny powerhouse that’s easy to use. The SimplyGo mini is small, portable and powerful. The rechargeable battery provides up to 9 hours* backup and the simple design makes it easy to maintain

Rugged impact resistant design*: SimplyGo Mini is subjected to the most rigorous testing, including impact, vibrations and temperature extremes. That means drop it, shake it, accidentally leave it in the car on a hot summer day, Philips made sure it can stand up to the abuses of everyday life

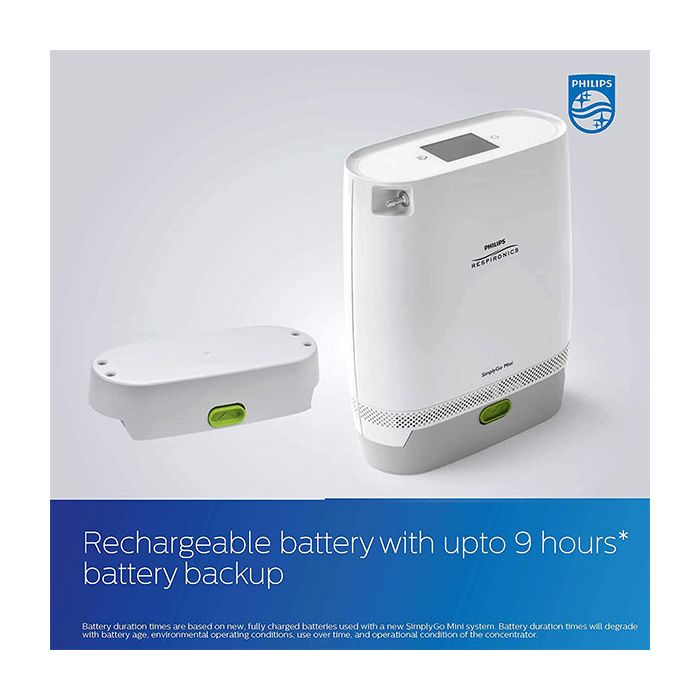

Built-in, detachable and long life battery: SimplyGo Mini offers easy-to-change lithium ion battery options with standard AC and DC power cords that add convenience and flexibility.

The rechargeable battery provides up to 9 hours* battery backup.

Compact design: Compact design is lightweight at only 5 lbs. (2.3 kg) with standard battery installed and 6 lbs. (2.7 kg) with extended battery installed

Five pulse dose settings designed to keep you on the go: The Philips SimplyGo Mini is right for you if you have a prescription for pulse flow oxygen. Pulse mode – detects breath intake and delivers the necessary volume of oxygen.

FAA approved for in-flight use: The manufacturer of this POC has determined this device confirms to all applicable US Federal Aviation Administration (FAA) requirements for POC carriage and use on board aircraft.

Specification:

Width 8.3 Inch

Length 9.4 Inch with lightweight battery, 10.2 Inch with extended duration battery

Depth 3.6 Inch

Weight 1.7 kg

Weight of lightweight battery – 0.5 kg

Weight of extended duration battery – 1 kg

Oxygen Output (maximum) 1,000 mlPM

Oxygen Concentration Levels 87 to 96%

Outlet Pressure 20 psig

Maximum Operating Altitude 10,000 feet above sea level

Noise >43 dBA typical at setting 2 with 20 BPM

>46 dBA typical at setting 5

Power Requirements AC Input: 100 to 240 VAC, 50/60 Hz

AC Output: 19 VDC, 6.3 A max

Power Consumption 120 watts while charging

DC Input 12 – 16 VDC

DC Output 19 +/- 5% BDC, 6.3 Amp

Battery Lithium Ion, 14.4 VDC (nominal)

Battery Options Standard battery or extended battery (equals two standard batteries)

Battery Duration (typical) battery duration times are based on new, fully charged batteries used with a new SimplyGo Mini System. Battery duration times will degrade with battery age, environmental operating conditions, use over time, and operational conditions

Standard – up to 4.5 hours

Extended – up to 9 hours

Alarms No breath, low oxygen concentration, high breath rate, technical fault, low battery, no flow, depleted battery, external power failure

FAA approval Yes

Manufacturer Phillips Respironics

Brand SimplyGo Mini
