MEYRA Avanti 1.736

Description:

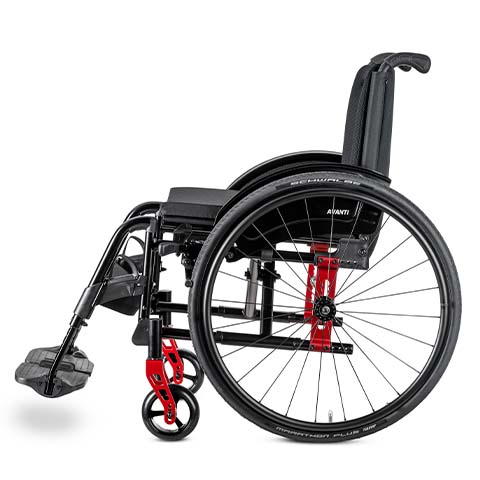

The Avanti 1736 from the Meyra brand is an economical adaptive fall wheelchair. This is compatible with the Meyra construction kit. It is available in three different frame lengths and has a seat width of 30 to 58 cm. The seat depth is 33 to 53 cm and the back height is up to 44 cm. It has a straight front end with individually swing-away and removable leg supports, which allows individualized use.

Benefits:

• Fine adjustment Three frame lengths enable very good proportional allocation
• Wide variety of therapeutically proven accessories
• Equipment adaptable to personal needs even with changing medical conditions Extensive modular system

Technical Details:

• Seat widths between 30 and 58 cm
• Seat depths 33 to 53 cm
• Back heights 34 to 44 cm
• Max. seat angle
• Inclination 6°

Adjustments

• 3 Frame lengths
• Seat widths between 300 and 580 mm
• Seat depths from 330 to 530 mm
• Back heights from 340 to 440 mm
• With wheel sizes 22“ and 24“ the seat heights can be adjusted between 425 and max. 560 mm and in the back between 400 and 520 mm
• The maximum possible seat inclination is 12°

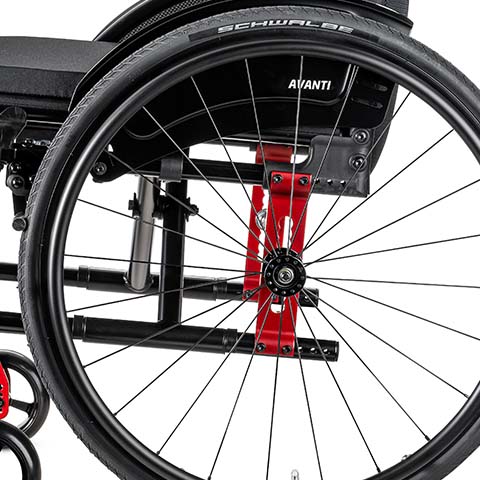

• The rear wheel can be adjusted to 4 horizontal and 9 vertical positions 3° wheel camber possible (optional)
